CSE-250 Fall 2022 - Section B - Graphs

Graphs

CSE-250 Fall 2022 - Section B

Oct 5, 2022

Textbook: Ch. 15.3

Graphs

A graph is a pair $(V, E)$ where

  • $V$ is a set of vertices
  • $E$ is a set of vertex pairs called edges
  • edges and vertices may also store data (labels)

Graphs

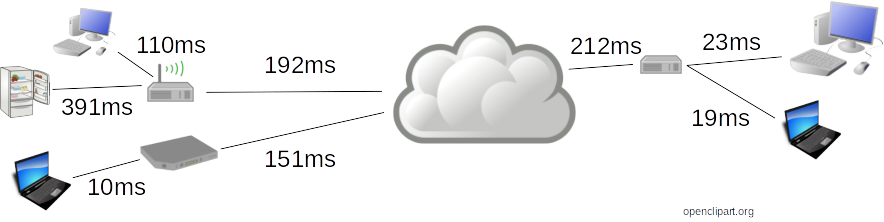

Example: A computer network
(edges store ping, nodes store addresses)

Edge Types

Directed Edge (e.g., transmit bandwidth)
  • Ordered pair of vertices $(u, v)$
  • origin ($u$) → destination ($v$)
Undirected edge (e.g., round-trip latency)
  • Unordered pair of vertices $(u, v)$
Directed Graph
All edges are directed
Undirected Graph
All edges are undirected

Other Applications

  • Transportation (Flight/Road/Rail Routing)
  • Protein/Protein Interactions
  • Social Networks
  • Dependency Tracking (e.g., make)
  • Taxonomies

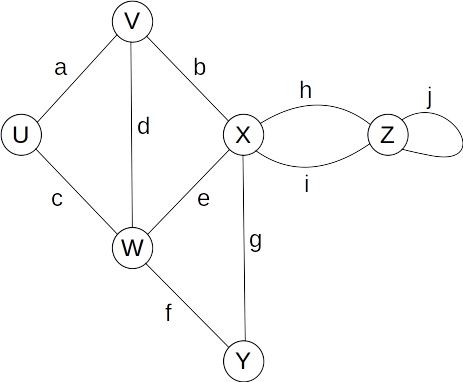

Terminology

Endpoints (end-vertices) of an edge
U, V are the endpoints of a
Edges incident on a vertex
a, b, d are incident on V
Adjacent Vertices
U, V are adjacent
Degree of a vertex (# of incident edges)
X has degree 5
Parallel Edges
h, i are parallel
Self-Loop
j is a self-loop
Simple Graph
A graph without parallel edges or self-loops

Terminology

Path
Sequence of alternating vertices and edges
begins with a vertex
ends with a vertex
each edge is preceded and followed by its endpoints
Simple Path
path such that all of its vertices and edges are distinct
Examples




Terminology

Path
Sequence of alternating vertices and edges
begins with a vertex
ends with a vertex
each edge is preceded and followed by its endpoints
Simple Path
path such that all of its vertices and edges are distinct
Examples

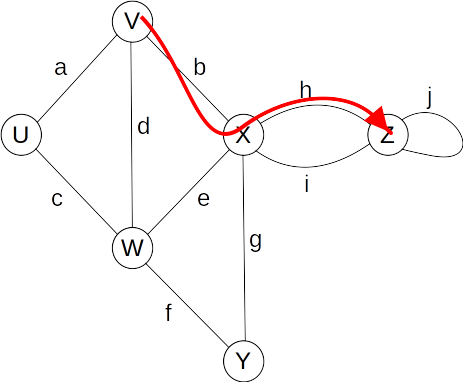

V, b, X, h, Z is a simple path.



Terminology

Path
Sequence of alternating vertices and edges
Begins with a vertex
Ends with a vertex
Each edge is preceded and followed by its endpoints
Simple Path
Path such that all of its vertices and edges are distinct
Examples

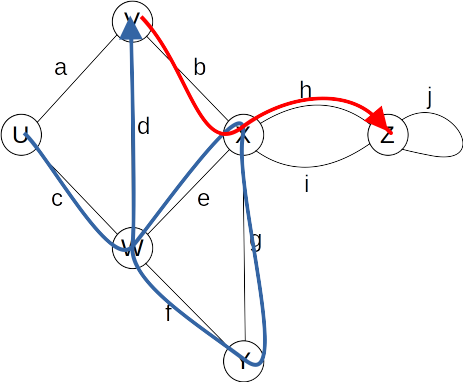

V, b, X, h, Z is a simple path.
U, c, W, e, X, g, Y, f, W, d, V is a path that is not simple.

Terminology

Cycle
Path that begins and ends with the same vertex
Must contain at least one edge
Simple Cycle
Cycle such that all of its vertices and edges are distinct
Examples




Terminology

Cycle
Path that begins and ends with the same vertex
Must contain at least one edge
Simple Cycle
Cycle such that all of its vertices and edges are distinct
Examples

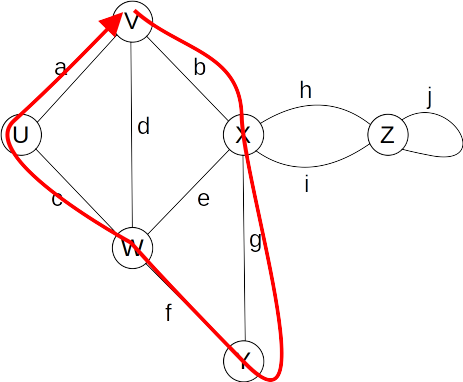

V, b, X, g, Y, f, W, c, U, a, V is a simple cycle



Terminology

Cycle
Path that begins and ends with the same vertex
Must contain at least one edge
Simple Cycle
Cycle such that all of its vertices and edges are distinct
Examples

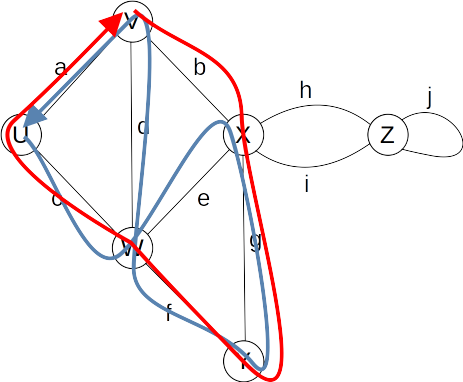

V, b, X, g, Y, f, W, c, U, a, V is a simple cycle
U, c, W, e, X, g, Y, f, W, d, V is a cycle that is not simple

Notation

$n$
The number of vertices
$m$
The number of edges
$deg(v)$
The degree of vertex $v$

Graph Properties

$$\sum_{v} deg(v) = 2m$$

Proof: Each edge is counted twice

Graph Properties

In a directed graph with no self-loops and no parallel edges:

$$m \leq n(n-1)$$

  • No parallel edges: each pair connected at most once
  • No self loops: pick each vertex once

$n$ choices for the first vertex; $(n-1)$ choices for the second vertex. $$m \leq n(n-1)$$

Hey, isn't this a data structures class?

A (Directed) Graph ADT

Two type parameters (Graph[V, E])
V: The vertex label type
E: The edge label type
Vertices
... are elements (like Linked List Nodes)
... store a value of type V
Edges
... are elements
... store a value of type E

A (Directed) Graph ADT


  trait Graph[V, E] {
    def vertices: Iterator[Vertex]
    def edges: Iterator[Edge]
    def addVertex(label: V): Vertex
    def addEdge(orig: Vertex, dest: Vertex, label: E): Edge
    def removeVertex(vertex: Vertex): Unit
    def removeEdge(edge: Edge): Unit
  }


A (Directed) Graph ADT


  trait Vertex[V, E] {
    def outEdges: Seq[Edge]
    def inEdges: Seq[Edge]
    def incidentEdges: Iterator[Edge] = outEdges ++ inEdges
    def edgeTo(v: Vertex): Boolean
    def label: V
  }

  trait Edge[V, E] {
    def origin: Vertex
    def destination: Vertex
    def label: E
  }


Attempt 1: Edge List

Data Model

A List of Edges
ArrayBuffer
A List of Vertices
ArrayBuffer

Attempt 1: Edge List


    class DirectedGraphV1[V, E] extends Graph[V, E]
    {
      val vertices = mutable.Buffer[Vertex]()
      val edges    = mutable.Buffer[Edge]()

      /* ... */
    }


Attempt 1: Edge List


    def addVertex(label: V): Vertex =
      vertices.append(new Vertex(label))


What's the complexity?

Attempt 1: Edge List


    def addEdge(orig: Vertex, dest: Vertex, label: E): Edge =
      edges.append(new Edge(orig, dest, label))


What's the complexity?

Attempt 1: Edge List


    def removeEdge(edge: Edge): Unit =
      edges.subtractOne(edge)


What's the complexity? ($O(n)$)

Attempt 2: Linked Edge List

Data Model

A List of Edges
DoublyLinkedList
A List of Vertices
DoublyLinkedList

DoublyLinkedList


  class DoublyLinkedList[T] extends Seq[T] {
    def append(element: T): Node =
      /* O(1) with tail pointer */

    def remove(node: Node): Unit =
      /* O(1) */

    def iterator: Iterator[T]: Unit =
      /* O(1) + O(1) per call to next */
  }


Attempt 2: Linked Edge List


    class DirectedGraphV2[V, E] extends Graph[V, E] {
      val vertices = DoublyLinkedList[Vertex]()

      class Vertex(label: V) = {
        var node: DoublyLinkedList[Vertex].Node = null
        /* ... */
      }

      def addVertex(label: V): Vertex = {
        val vertex = new Vertex(label)
        val node = vertices.append(vertex)
        vertex.node = node
        return vertex
      }
      /* ... */
    }


What's the complexity?

Attempt 2: Linked Edge List


    class DirectedGraphV2[V, E] extends Graph[V, E] {
      val edges = DoublyLinkedList[Edge]()

      class Edge(orig: Vertex, dest: Vertex, label: E) = {
        var node: DoublyLinkedList[Edge].Node = null
        /* ... */
      }

      def addEdge(orig: Vertex, dest: Vertex, label: E): Vertex = {
        val edge = new Edge(orig, dest, label)
        val node = edges.append(vertex)
        edge.node = node
        return edge
      }
      /* ... */
    }


What's the complexity?

Attempt 2: Linked Edge List


    class DirectedGraphV2[V, E] extends Graph[V, E] {
      val edges = DoublyLinkedList[Edge]()

      def removeEdge(edge: Edge): Unit = {
        edges.remove(edge.node)
      }
      /* ... */
    }


What's the complexity?

Attempt 2: Linked Edge List


    class DirectedGraphV2[V, E] extends Graph[V, E] {
      val vertices = DoublyLinkedList[Vertex]()

      def removeVertex(vertex: Vertex): Unit = {
        vertices.remove(vertex.node)
      }
      /* ... */
    }


What if there's an edge to/from vertex?

Attempt 2: Linked Edge List


    class DirectedGraphV2[V, E] extends Graph[V, E] {
      val vertices = DoublyLinkedList[Vertex]()

      def removeVertex(vertex: Vertex): Unit = {
        vertices.remove(vertex.node)
        for(edge <- vertex.incidentEdges){
          removeEdge(edge)
        }
      }
      /* ... */
    }


What's the complexity? ($O(1) + O(T_{incidentEdges}(n, m))$)

Attempt 2: Linked Edge List


    class DirectedGraphV2[V, E] extends Graph[V, E] {
      val vertices = DoublyLinkedList[Vertex]()
      val edges = DoublyLinkedList[Edge]()

      class Vertex(label: V) = {
        /* ... */

        def outEdges =
          vertices.filter { _.orig = this }

        def inEdges =
          vertices.filter { _.dest = this }
      }
      /* ... */
    }


What's the complexity? ($O(m) = O(n^2)$)

Edge List

Edge List Summary

  • addEdge, addVertex: $O(1)$
  • removeEdge: $O(1)$
  • removeVertex: $O(m)$
  • vertex.incidentEdges: $O(m)$
  • vertex.edgeTo: $O(m)$
  • Space Used: $O(n) + O(m)$

Idea: Store the in/out edges for each vertex.

Attempt 3: Adjacency List


    class DirectedGraphV3[V, E] extends Graph[V, E] {
      val vertices = DoublyLinkedList[Vertex]()

      class Vertex(label: V) = {
        var node: DoublyLinkedList[Vertex].Node = null
        val inEdges = DoublyLinkedList[Edge]()
        val outEdges = DoublyLinkedList[Edge]()
        /* ... */
      }
      /* ... */
    }


Attempt 3: Adjacency List


    class DirectedGraphV3[V, E] extends Graph[V, E] {
      /* ... */
      def addEdge(orig: Vertex, dest: Vertex, label: E): Vertex = {
        val edge = new Edge(orig, dest, label)
        val node = edges.append(vertex)
        edge.node = node
        orig.outEdges.append(edge)
        dest.inEdges.append(edge)
        return edge
      }
      /* ... */
    }


What's the complexity?

Attempt 3: Adjacency List


    class DirectedGraphV3[V, E] extends Graph[V, E] {
      /* ... */
      def removeEdge(edge: Edge): Unit = {
        edges.remove(edge.node)
        edge.orig.outEdges.subtractOne(edge)
        edge.dest.inEdges.subtractOne(edge)
      }
      /* ... */
    }


What's the complexity?

Attempt 4: Adjacency List


    class DirectedGraphV4[V, E] extends Graph[V, E] {
      /* ... */
      class Edge(orig: Vertex, dest: Vertex, label: E) = {
        var node: DoublyLinkedList[Edge].Node = null
        var origNode: DoublyLinkedList[Edge].Node = null
        var destNode: DoublyLinkedList[Edge].Node = null
        /* ... */
      }
      /* ... */
    }


Attempt 4: Adjacency List


    class DirectedGraphV4[V, E] extends Graph[V, E] {
      /* ... */
      def addEdge(orig: Vertex, dest: Vertex, label: E): Vertex = {
        val edge = new Edge(orig, dest, label)
        val node = edges.append(vertex)
        edge.node = node
        edge.origNode = orig.outEdges.append(edge)
        edge.destNode = dest.inEdges.append(edge)
        return edge
      }
      /* ... */
    }


What's the complexity?

Attempt 4: Adjacency List


    class DirectedGraphV4[V, E] extends Graph[V, E] {
      /* ... */
      def removeEdge(edge: Edge): Unit = {
        edges.remove(edge.node)
        edge.orig.outEdges.remove(edge.origNode)
        edge.dest.inEdges.remove(edge.destNode)
      }
      /* ... */
    }


What's the complexity?

Attempt 4: Adjacency List


    class DirectedGraphV4[V, E] extends Graph[V, E] {
      /* ... */
      def removeVertex(vertex: Vertex): Unit = {
        vertices.remove(vertex.node)
        for(edge <- vertex.incidentEdges){
          removeEdge(edge)
        }
      }
      /* ... */
    }


What's the complexity?

Adjacency List Summary

  • addEdge, addVertex: $O(1)$
  • removeEdge: $O(1)$
  • vertex.incidentEdges: $O(deg(vertex))$
  • removeVertex: $O(deg(vertex))$
  • vertex.edgeTo: $O(deg(vertex))$
  • Space Used: $O(n) + O(m)$

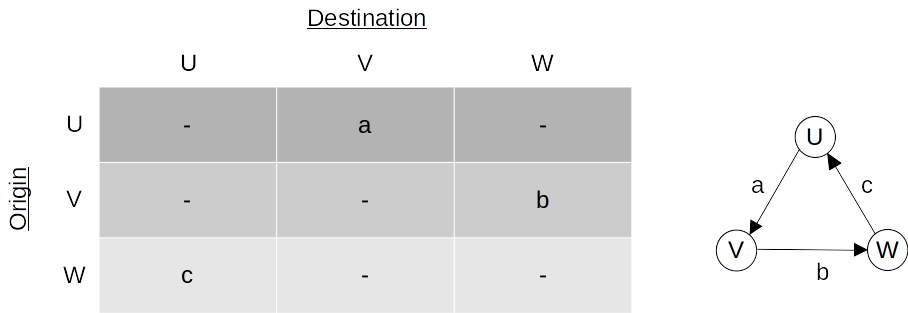

Adjacency Matrix

Adjacency Matrix Summary

  • addEdge, removeEdge: $O(1)$
  • addVertex, removeVertex: $O(n^2)$
  • vertex.incidentEdges: $O(n)$
  • vertex.edgeTo: $O(1)$
  • Space Used: $O(n^2)$
